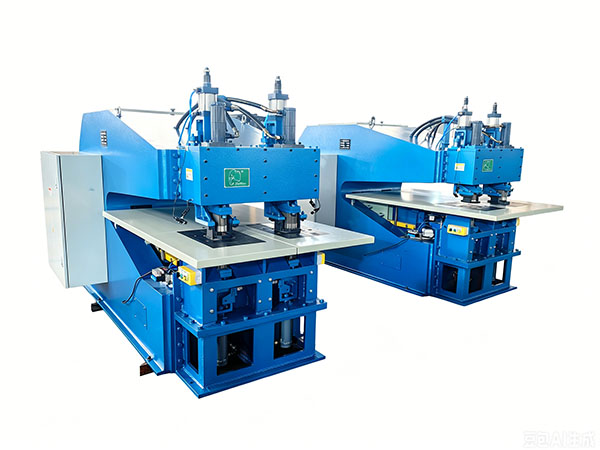

| HWB-H Heavy Antomatic Veneer Partcher |
 |
|
|
| Features |
It remains a difficult problem to mend natural flaw on the thick veneer in the process of man-made board,especially plywood.This machine is specially designed and manufactured for this concern.In the patching process,there will be no cracking or deformation.After patching,the veneer is flat and in a good shape.
Easy and convenient operation enables workers to operate the machine with basic training.Therefore,it is the best choice for natching thick veneer |
| Basic parameters |
Mending veneer thickness
|
2～8 mm |
Mending veneer size
|
60×100/75×130 mm
|
Mending speed
|
约4～5 s/次
|
Power
|
6.05 KW
|
Compressed air
|
4～6 kg/cm2 |
Normal oil pressure
|
16 MPa |
Diameter of cylinder
|
Φ80-Φ90 mm
|
Overall dimension(L×W×H)
|
2000L×1590W×1950H (mm) |
Approx weight
|
约1700 kg
|
|
| | |   |
|
|
